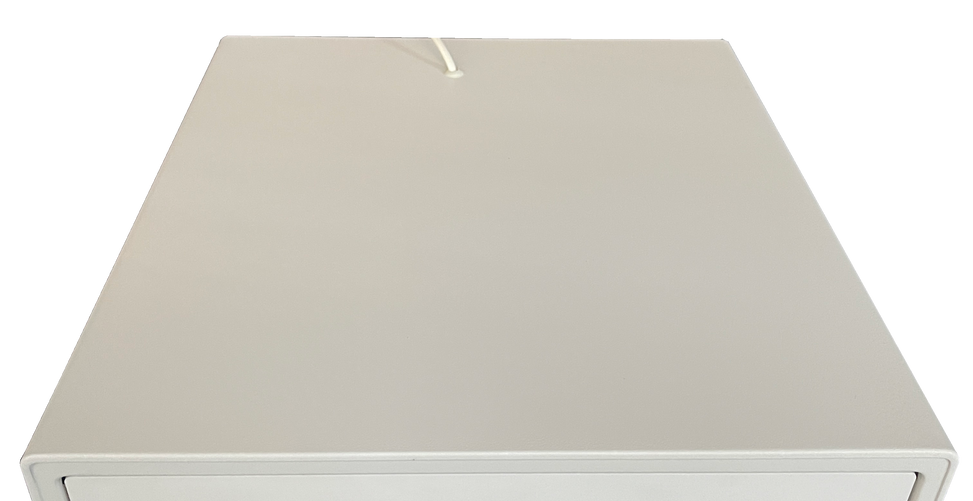

Economical Compact Cash Drawer
for Small retail applications at low-cost price

  • Dimensions:  334 (W) x 368(D) x 80/94 (H) mm including rubber foot

  • Net Weight: 3.5Kgs.

  • Cash Tray:   5 coin (3 coin removable + 2 coin) / 4 Bill (fixed) Metal Wire Gripper as standard

  • Material : Housing cover and bottom plate: SGCC

  • Front Panel : Strong plastic front panel with one media slot as standard

  • Lock key : 3-Position Manual Lock, Neutral and Manual Open

  • Solenoid : DC 12V or 24V, 6P/4C RJ11 connector on top cover as standard. RJ12 6P/6C with micro switch as option

  • Durability : MTBF 300,000 over cycles

  • Color: Black,  white as standard
